Solar Inverter Cage

admin — Thu, 08 Aug 2019 03:10:29 +0000

Fill out the form below with your cage sizing for your quote. Fields marked with an * are compulsory.

[contact-form-7]

The post Solar Inverter Cage appeared first on Neon Solar Systems.

Omniksol Three Phase Inverter 20K-TL

admin — Thu, 08 Aug 2019 03:10:22 +0000

Features

High efficiency (Max. Efficiency 98.2%, Euro. Efficiency 97.8%.)
Double MPPT, MPPT accuracy up to 99.9%.
IP65 design, work properly under severe outdoor circumstances.
Full solution of safety protection, DC switch integrated.
Flexible input and output connections, support RS485, Ethernet and USB communication.
Transformerless design and high power density, lighter and more convenient for installation.

Inverter Type	Omniksol-13k-TL	Omniksol-20k-TL
Input(DC)
Max. PV Power[W]	13500	21200
Max. DC Voltage[V]	1000
Nominal DC Voltage[V]	640
Operating MPPT Voltage Range[V]	250-800	250-850
MPPT Voltage Range at Nominal Power[V]	400-800	480-850
Start up DC Voltage[V]	300
Turn off DC Voltage[V]	250
Max. DC Current[A]	22-Nov	22/22
Number of MPPT Trackers	2
Number of DC Connection	A:3/B:3
DC Connection Type	Mc4 connector
Output(AC)
Max. AC Power[W]	13000	19200
Nominal AC Power[W]	13000	19200
Nominal Grid Voltage[V]	3/N/PE;220/380
	3/N/PE;230/400
	3/N/PE;240/415
Nominal Grid Frequency[Hz]	50/60
Max. AC Current[A]	20	29
Grid Voltage Range*[V]	185-276

Grid Frequency Range*[Hz]	45-55/55-65
Power Factor	0.9i?1?0.9c
Total Harmonic Distortion(THD)	<2%
Feed in Starting Power[W]	60
Night time Power Consumption[W]	<1
Standby Consumption[W]	12
AC Connection Type	Plug-in connector
Efficiency
Max. Efficiency	98.00%	98.20%
Euro Efficiency	97.50%	97.80%
MPPT Efficiency	99.90%
Safety and Protection
DC Insulation Monitoring	Yes
DC Switch	Optional
Residual Current Monitoring Unit(RCMU)	Integrated
Grid Monitoring with Anti-islanding	Yes
Protection Class	I(According to IEC 62103)
Overvoltage Category	PV II/Mains III(According to IEC 62109-1)
Reference Standard
Safety Standard	EN 62109, AS/NZS 3100
EMC Standard	EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12
Grid Standard	VDE-AR-N-4105, VDE 0126-1-1, C10/11, G59/2, AS4777, CEI0-21, CQC
Physical Structure
Dimension(WxHxD)[mm]	575x655x240
Weight[Kg]	44.5	45
Environmental Protection Rating	IP65(According to IEC 60529)
Cooling Concept	Fan cooling
Mounting Information	Wall bracket
Operating Temperature Range	-25?C to +60?C(derating above 45_)
Relative Humidity	0% to 98%, no condensation
Max. Altitude (above sea level)	2000m
Noise Level	<45dB(with fan<50dB)
Isolation Type	Transformerless
Display	800×480 TFT Graphic Display
Data Communication Interfaces	RS485(WiFi, GPRS optional)
Computer Communication	RS232 (USB)
Standard Warranty	5 Years (5~25 years optional)

The post Omniksol Three Phase Inverter 20K-TL appeared first on Neon Solar Systems.

Omniksol Three Phase Inverter 13K-TL

admin — Thu, 08 Aug 2019 03:10:20 +0000

Features

High efficiency (Max. Efficiency 98.2%, Euro. Efficiency 97.8%.)
Double MPPT, MPPT accuracy up to 99.9%.
IP65 design, work properly under severe outdoor circumstances.
Full solution of safety protection, DC switch integrated.
Flexible input and output connections, support RS485, Ethernet and USB communication.
Transformerless design and high power density, lighter and more convenient for installation.

Inverter Type	Omniksol-13k-TL	Omniksol-20k-TL
Input(DC)
Max. PV Power[W]	13500	21200
Max. DC Voltage[V]	1000
Nominal DC Voltage[V]	640
Operating MPPT Voltage Range[V]	250-800	250-850
MPPT Voltage Range at Nominal Power[V]	400-800	480-850
Start up DC Voltage[V]	300
Turn off DC Voltage[V]	250
Max. DC Current[A]	22-Nov	22/22
Number of MPPT Trackers	2
Number of DC Connection	A:3/B:3
DC Connection Type	Mc4 connector
Output(AC)
Max. AC Power[W]	13000	19200
Nominal AC Power[W]	13000	19200
Nominal Grid Voltage[V]	3/N/PE;220/380
	3/N/PE;230/400
	3/N/PE;240/415
Nominal Grid Frequency[Hz]	50/60
Max. AC Current[A]	20	29
Grid Voltage Range*[V]	185-276

Grid Frequency Range*[Hz]	45-55/55-65
Power Factor	0.9i?1?0.9c
Total Harmonic Distortion(THD)	<2%
Feed in Starting Power[W]	60
Night time Power Consumption[W]	<1
Standby Consumption[W]	12
AC Connection Type	Plug-in connector
Efficiency
Max. Efficiency	98.00%	98.20%
Euro Efficiency	97.50%	97.80%
MPPT Efficiency	99.90%
Safety and Protection
DC Insulation Monitoring	Yes
DC Switch	Optional
Residual Current Monitoring Unit(RCMU)	Integrated
Grid Monitoring with Anti-islanding	Yes
Protection Class	I(According to IEC 62103)
Overvoltage Category	PV II/Mains III(According to IEC 62109-1)
Reference Standard
Safety Standard	EN 62109, AS/NZS 3100
EMC Standard	EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12
Grid Standard	VDE-AR-N-4105, VDE 0126-1-1, C10/11, G59/2, AS4777, CEI0-21, CQC
Physical Structure
Dimension(WxHxD)[mm]	575x655x240
Weight[Kg]	44.5	45
Environmental Protection Rating	IP65(According to IEC 60529)
Cooling Concept	Fan cooling
Mounting Information	Wall bracket
Operating Temperature Range	-25?C to +60?C(derating above 45_)
Relative Humidity	0% to 98%, no condensation
Max. Altitude (above sea level)	2000m
Noise Level	<45dB(with fan<50dB)
Isolation Type	Transformerless
Display	800×480 TFT Graphic Display
Data Communication Interfaces	RS485(WiFi, GPRS optional)
Computer Communication	RS232 (USB)
Standard Warranty	5 Years (5~25 years optional)

The post Omniksol Three Phase Inverter 13K-TL appeared first on Neon Solar Systems.

GoodWe 25KW Dual Three-phase GW25K-DT

admin — Thu, 08 Aug 2019 03:10:15 +0000

GoodWe 25KW Dual Three-phase

Model: GW25K-DT

The GoodWe DT series inverter is suitable for commercial and industrial roofs as well as small and medium-sized photovoltaic power systems. Because of the reliable grid support capabilities, high waterproof and dustproof grade and extra-wide voltage range of module, it can not only be used in commercial roof and commercial power station PV systems, but also is qualified for the design requirements of large-megawatt power stations.

DATASHEET

The post GoodWe 25KW Dual Three-phase GW25K-DT appeared first on Neon Solar Systems.

GoodWe 20KW Dual Three-phase GW20K-DT

admin — Thu, 08 Aug 2019 03:10:15 +0000

GoodWe 20KW Dual Three-phase

Model: GW20K-DT

DATASHEET

The post GoodWe 20KW Dual Three-phase GW20K-DT appeared first on Neon Solar Systems.

GoodWe 15KW Dual Three-phase GW15KN-DT

admin — Thu, 08 Aug 2019 03:10:14 +0000

GoodWe 15KW Dual Three-phase

Model: GW15KN-DT

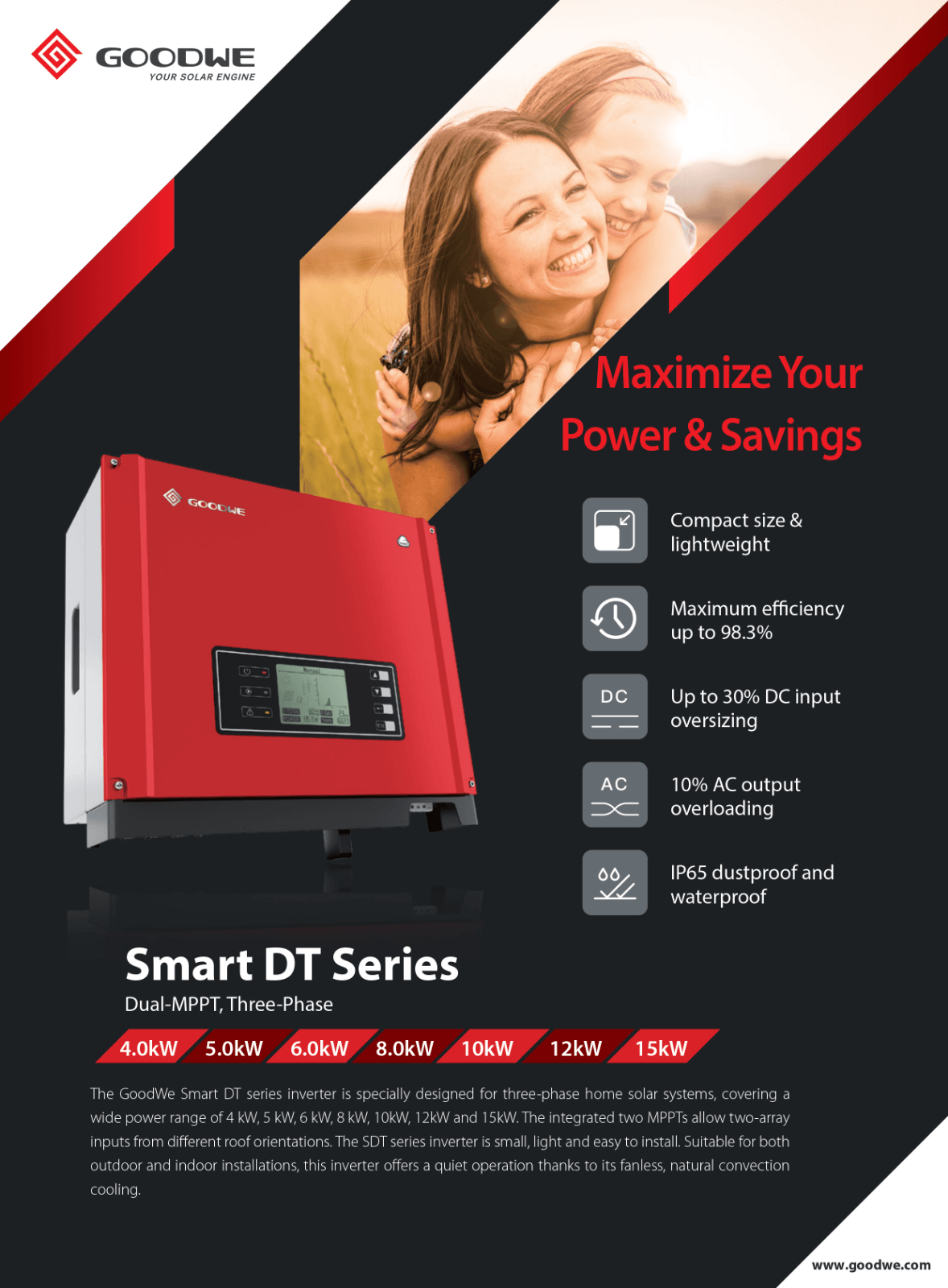

The GoodWe Smart DT series inverter is specially designed for three-phase home solar systems, covering a wide power range of 4kW, 5kW, 6kW, 8kW, 10kW, 12kW and 15kW. The integrated two MPPTs allow two-array inputs from different roof orientations. The SDT series inverter is small, light and easy to install. Suitable for both outdoor and indoor installations, this inverter offers a quiet operation thanks to its fanless, natural convection cooling.

DATASHEET

The post GoodWe 15KW Dual Three-phase GW15KN-DT appeared first on Neon Solar Systems.

GoodWe 6.0KW Dual Three-phase GW6000L-DT

admin — Thu, 08 Aug 2019 03:10:13 +0000

GoodWe 6.0KW Dual Three-phase

Model: GW6000L-DT

DATASHEET

The post GoodWe 6.0KW Dual Three-phase GW6000L-DT appeared first on Neon Solar Systems.

GoodWe 10KW Dual Three-phase GW10KL-DT

admin — Thu, 08 Aug 2019 03:10:13 +0000

GoodWe 10KW Dual Three-phase

Model: GW10KL-DT

DATASHEET

The post GoodWe 10KW Dual Three-phase GW10KL-DT appeared first on Neon Solar Systems.

GoodWe 5.0KW Dual Three-phase GW5000L-DT

admin — Thu, 08 Aug 2019 03:10:12 +0000

GoodWe 5.0KW Dual Three-phase

Model: GW5000L-DT

DATASHEET

The post GoodWe 5.0KW Dual Three-phase GW5000L-DT appeared first on Neon Solar Systems.

Goodwe Inverter 2.5kw Single-phase GW2500-NS

admin — Thu, 08 Aug 2019 03:10:11 +0000

Goodwe Inverter 2.5kw single phase

Model: GW2500-NS

GoodWe NS series is ideally suited for new-build housing projects or small domestic applications, providing you with a range from 1 to 3 kW models for installations as small as 3 PV modules. The NS series compares favourably to other inverters in the 1-3kW power class due to its small footprint and light weight.

DATASHEET

The post Goodwe Inverter 2.5kw Single-phase GW2500-NS appeared first on Neon Solar Systems.
